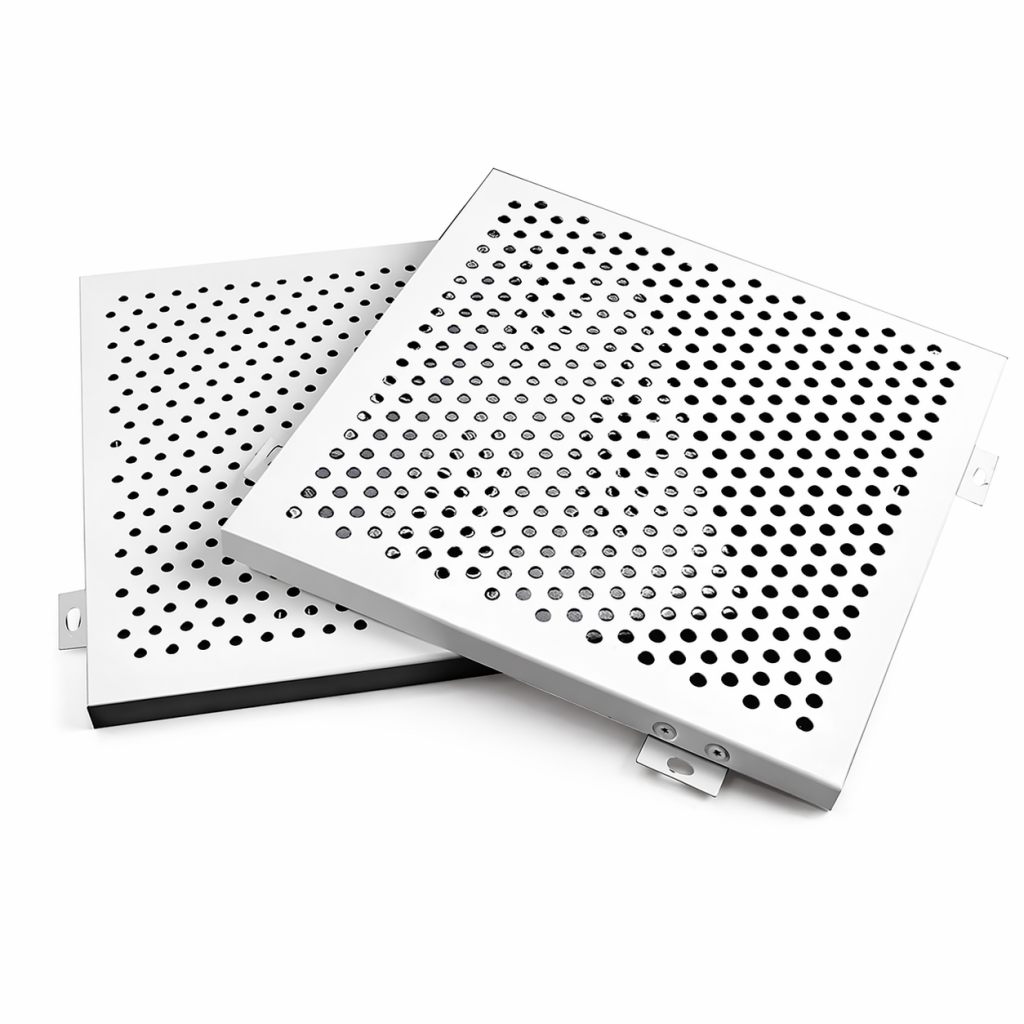

Perforated Aluminum Solid Panel

Material: A1100 (A3003 or other aluminum alloys available)
Aluminum Thickness: 3.0 mm
(Optional: 1.5 mm, 2.0 mm, 2.5 mm, 3.5 mm, 4.0 mm)
Panel Size (L × W × H): 150 × 150 × 20 mm
Maximum Size:
Length: up to 6,000 mm
Width: up to 1,800 mm
Thickness: up to 6 mm
Surface Treatment:Perforated – Round holes (Ø5 mm), available in flat or customized shapes
Edge Treatment:Beveled edges (various curvature options available)

Product Specifications

Coating Options:

PVDF Coating (Fluorocarbon)

Polyester Coating (PE)

Powder Coating

Wood Grain Finish

Coating Thickness:35–40 μm (PVDF Three-Coat System)

Optional: 25–30 μm (Polyester Two-Coat System)

Optional: 40–50 μm (Powder Coating)

Reinforcement:Reinforcing ribs can be added on the back according to panel size or customer requirements to ensure structural strength

Mounting Bracket Size:20 × 20 × 2 mm

Customization:Production available based on customer drawings

Packaging

Protective film + plastic foam.

Different packaging methods can be applied depending on product shape, and customized packaging solutions are available.
